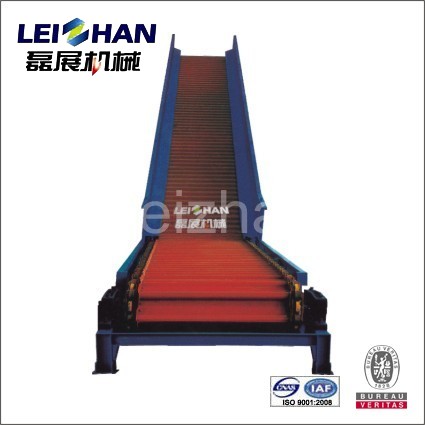

BFW Series Chain Conveyor

Introduction

Chain conveyor is a machine for conveying waste paper and pulp board to the drum pulper or hydrapulper to make toilet tissue paper, writing paper, kraft paper, fluting paper, test liner,etc.

Intended particularly for loading of waste pape(loose or in bales) or chemical pulp into a pulper.

As to the design, basic dimensions and parameters may differ and can be adapted to particular projects. Waste paper (loose or in bales), respectively chemical pulp, is loaded in a hopper and from here conveyed by means of a conveying chain or a band to its discharging point where falling into a pulper chest.

Advantages

1. Trough plate punch forming which high strength and excellent in crushing effect.

2. Chain board adopts closed design to prevent material leaking.

3. Two rows of idler traction chain and hollow roller shaft,and oil can be injected from pin roll to shaft sleeve and wear-resistant zinc-copper bushing.

4. Two rows of chain adopt long axis to prevent chain running deviation.

5. Chain wheel adopts cast steel to improve wear-resistant.

6. Raw material feeding plate adopts V design( more than effective conveying width 400mm) to improve raw material throughput.

7. Orbit type running,operate steadily and reliably, with low friction and low power consumption.

Operating Principle

1.Composed of driving device,tension device, link Plates, chain wheel and rack.

2.The machine adopts chain to drive through plate to transport raw materials into the drum pulper for pulping.

3.In order to meet the needs of the users and technical layout requirements, the transmission installation of chain conveyor is divided into left type and right type（look up along the material running direction, transmission installation in the right of the machine is right type, Otherwise for the right type）.
