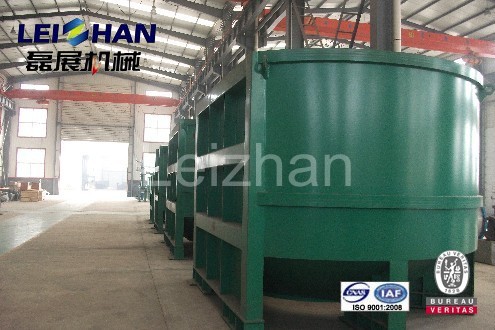

  • Type D hydrapulper

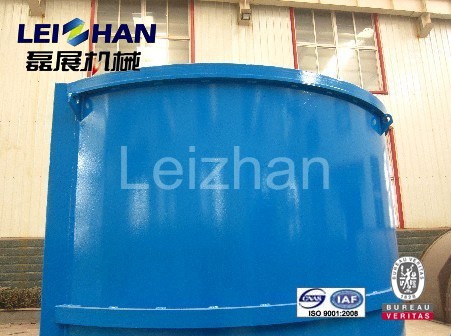

  • d series hydrapulper
  • d type hydrapulper

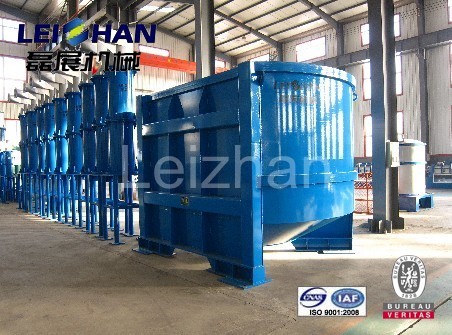

  • hydrapulper in the plant

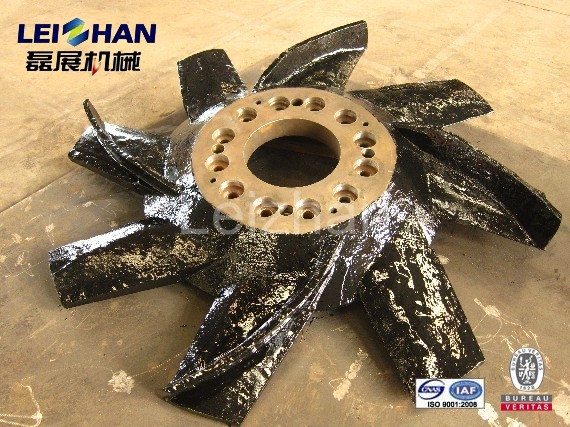

  • wear part of hydrapulper

D type hydrapulper

D type hydrapulper is used in paper and pulp industry for breaking waste paper and wet-strength paper

The above for reference only, please click below to know more.
Find Us on:
Features

Introduction

This equipment adopts D type structure, which improves the work efficiency, and it can be used for pulping waste paper & wet strength paper. D Type Hydrapulper is mainly used to crush pulp board, wastepaper, deinking, and pulp purification. Through dissociating, it can maximum make the paper’s fiber dissociating into fiber bundles or single fibers, while at the same time, it can maximize maintain impurity’s shape and strength.

Advantages

1.With low power consumption,high breaking efficiency by using fox rotor.

2.Rotor and outflow pulp tray locate above the bottom of the tank, forming a low pressure area around the outflow pulp tray, to reduce the contact between impurities and cutter or sieve plate, and prolong the service life of cutter and sieve plate.

3.The design of cutter blade between cutter and sieve plate prevents the twining of waste materials like wire and weaving, and reduce running current.

4.Having cleaning function, easy to start.

5.With three sets of bearings on drive, enhance service life of equipment, reduce maintenance costs.

6.Using a complete set of European standard belt wheel, can shorten maintenance time, improve work efficiency, reduce operating costs.

7.More than 25 m³ normal volume of hydrapulper is equipped with drive support.

Operating Principle

1.The fox rotor off-center, makes the paper materials and rotor contact more quickly, with high frequency.

2.The traditional hydrapulper produce a barrier-free cyclone, sending the waste paper move to rotor center by spiral path form the entrance.

3.while the "D" type hydrapulper has changed the way of flow, make the material contact more quickly with the rotor, and reduce beating time greatly, and improve production capacity in the condition of without increasing the power and volume.



Type ZDSD23 ZDSD24 ZDSD25 ZDSD26 ZDSD27 ZDSD28 ZDSD29 ZDSD30 ZDSD31 ZDSD32
Nominal volume (m3) 5 10 15 20 25 30 35 40 50 60
Concentration (%) 3-5
Capacity (t/d) 30-50 40-90 80-120 140-180 180-230 230-280 270-320 300-370 370-450 460-550
Motor power (Kw) 75 110 160 185 220 280 315 355 450 560
