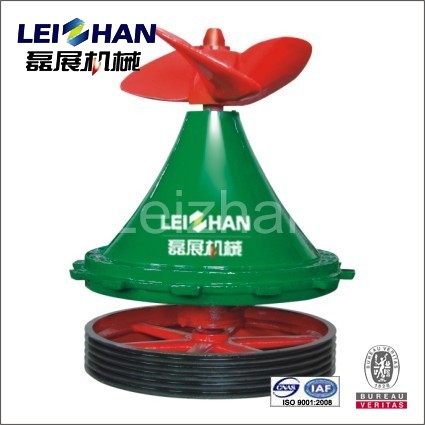

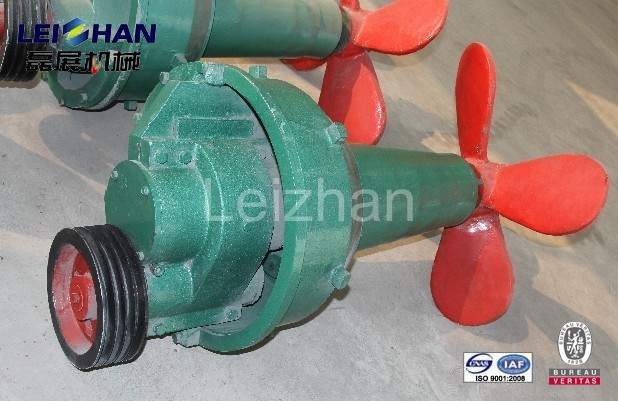

ZTJ series high taper helical propeller
ZTJ series high taper helical propeller is used to stir pulp circulatory in pulp pool. By using this equipment, the fiber in the pulp liquid is maintained in suspending condition, so it is ensured that distribution of paper components is uniform in pulp.
ZTJ series high taper helical propeller
It is used to stir pulp circulatory in pulp pool. By using this equipment, the fiber in the pulp liquid is maintained in suspending condition, so it is ensured that distribution of paper components is uniform in pulp.
Main specifications
| Type | ZTJ1 | ZTJ2 | ZTJ3 | ZTJ4 | ZTJ5 |
| Impeller diameter (mm) | φ500 | φ700 | φ750 | φ1000 | φ1250 |
| Slurry tank volume (m3) | 25-50 | 40-80 | 60-100 | 80-150 | 120-180 |
| Slurry tank concentration (%) | 3-5 | ||||
| Motor power (Kw) | 7.5 | 11 | 15 | 18.5 | 22 |
