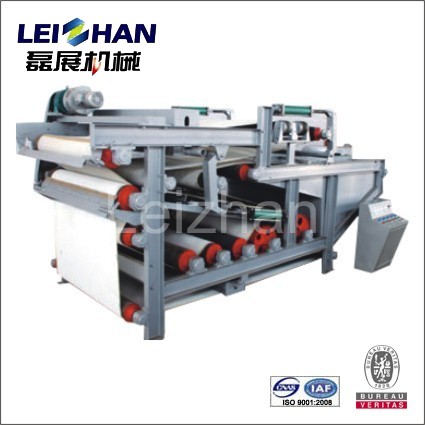

HD series sludge dewatering machine
HD series sludge dewatering machine is used for concentration mud in papermaking industry, municipal engineering and so on.
HD series sludge dewatering machine
It is used for concentration mud in papermaking industry, municipal engineering and so on.
Structure
Sludge dewatering (dehydrator) machine is mainly composed by the frame body, roller body, concrete processing equipment, dehydration roll, dehydration board, active roll, turning roller, adjustable partial roller, tension roller, drive, pneumatic device or manual device, the electric control device, blast device, joint water device, etc.
Main specification
| Type | HD-Ⅰ | HD-Ⅱ | HD-Ⅲ | HD-Ⅳ | Remark |
| Net width (mm) | 1500 | 2000 | 2500 | 3000 | Pneumatic (manual) to adjust deviation, pneumatic (manual) tensioning, anti-corrosive treatment. |
| Net belt speed (m/min) | 1.5-8 | ||||
| Inlet concentration (%) | 1.5-4 | ||||
| Outlet concentration (%) | 20-30 | ||||
| Cleaning water pressure (Mpa) | ≥0.5 | ||||
| Sludge throughput (m3/d) | 110-280 | 150-380 | 210-480 | 260-400 | |
| Motor power (Kw) | 2.2+1.1 | 3.0+1.5 | 4.0+2.2 | .5+2.2 | |
