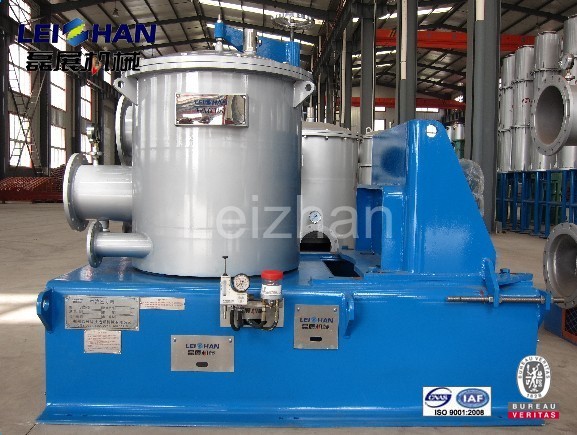

  • tail slurry pressure screen

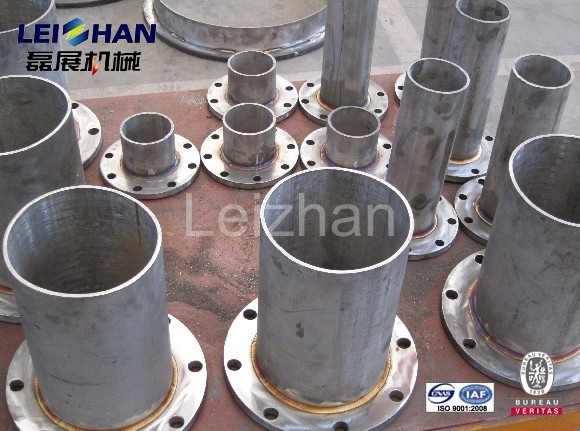

  • tail slurry pressure screen components

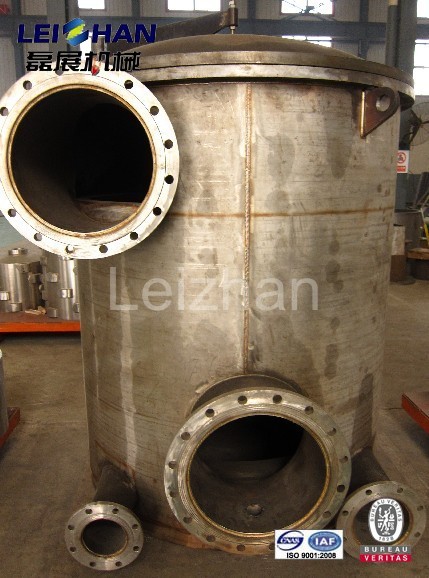

  • tail slurry pressure screen is producing

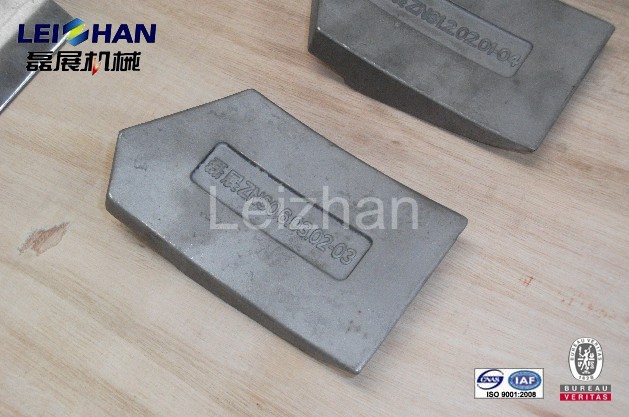

  • tail slurry pressure screen board

ZSQ Series pulp tailings pressure screen

ZSQ Series pulp tailings pressure screen,pulp tailings pressure screen is used for processing the pulp tailings after the first stage coarse screening.

The above for reference only, please click below to know more.
Find Us on:
Features

ZSQ Series pulp tailings pressure screen,pulp tailings pressure screen



It is used for processing the pulp tailings after the first stage coarse screening.


Features


1. The secondary defibering improves the yield of the slurry.
2. It can separate the light impurities by the centrifugation, featured by high separating efficiency.
3. With vertical design, the heavy impurities are more likely to deposit.

Main specifications



Type ZSQ1 ZSQ2 ZSQ3
Nominal volume (m3) 0.4 0.8 1.2
Inlet pressure (MPa) 0.15-0.25
Inlet concentration (%) 0.5-2
Capacity (t/d) 35-45 65-85 100-125
Motor power (Kw) 30 55 90
