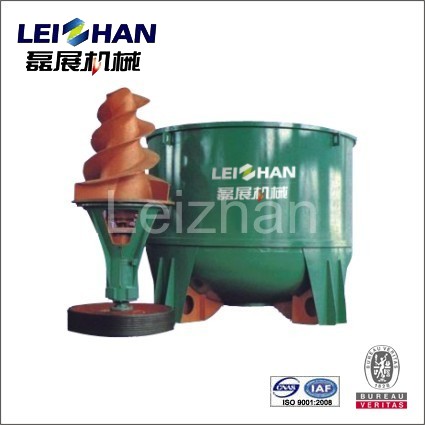

ZDSG high-concentration hydrapulper
ZDSG high-concentration hydrapulper is mainly used for defibering waste paper in high concentration in deinking process.
ZDSG high-concentration hydrapulper
ZDSG high-concentration hydrapulper is mainly used for defibering waste paper in high concentration in deinking process.
Features
1. Tower-shaped many screw rotor, fast pulp cycling, strong defibering ability.
2. High concentration defibering pulp, saving energy and chemicals.
3. High concentration defibering pulp, small breaking of impurity, high deinking efficiency.
4. Compact structure, easy operation and maintenance.
Main specifications
| Type | ZDSG5 | ZDSG10 | ZDSG15 | ZDSG20 | ZDSG25 | ZDSG30 | ZDSG35 | |
| Nominal volume (m3) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | |
| Slurry concentration (%) | 12-18 | |||||||
| Capacity (t/d) | 20-25 | 40-50 | 60-70 | 80-100 | 130-185 | 160-225 | 185-260 | |
| Motor power (Kw) | 110 | 220 | 315 | 400 | 450 | 500 | 560 | |
