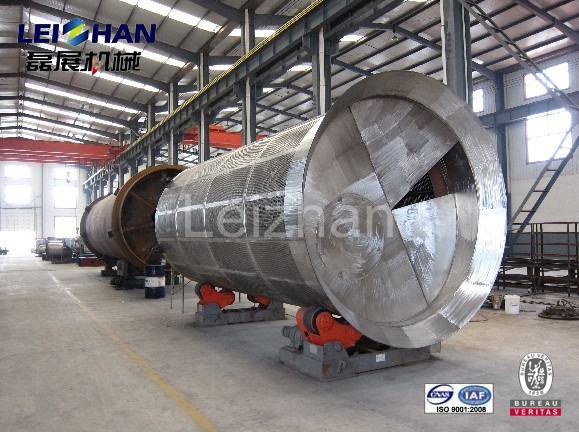

  • ZG drum pulper

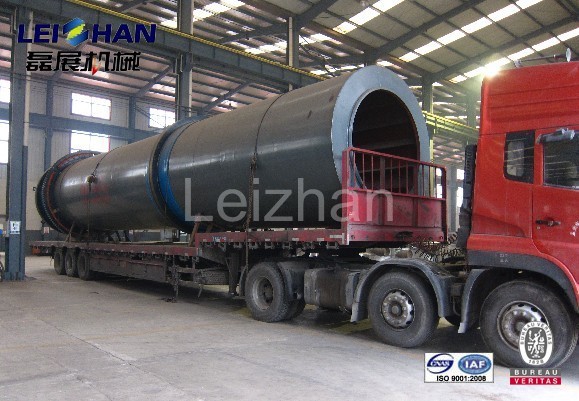

  • drum pulper is seent to abroad

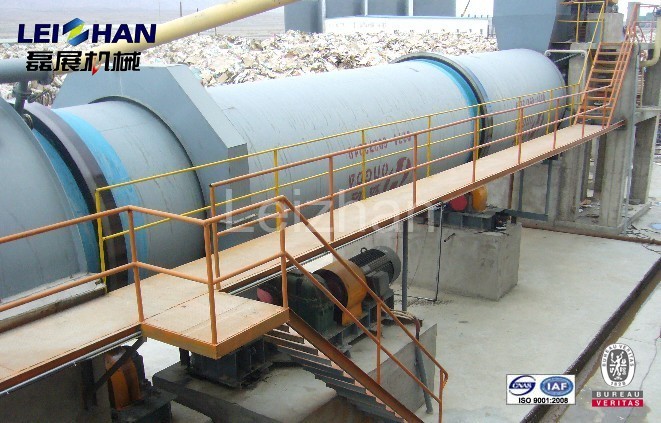

  • drum pulper is working
  • drum pulper in the Leizhan plant

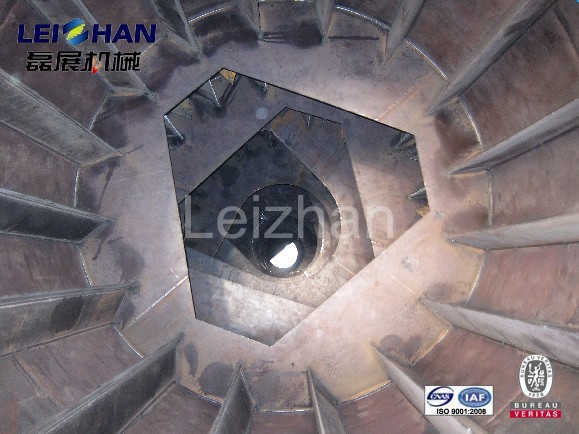

  • drum pulper inner place

ZG series drum type hydrapulper

ZG series drum type hydrapulper is used for continuous breaking and coarse screening of the waste paper materials in the high concentration.

The above for reference only, please click below to know more.
Find Us on:
Features

ZG series drum pulper



It is used for continuous breaking and coarse screening of the waste paper materials in the high concentration.


Features


1. The continuous breaking in high concentration(14`~18%), saving the energy.
2. The breaking and coarse screening integrated, optimizing the pulping technologies.
3. The gentle defibering, high impurity removal rate.
4. Wide application range, suitable for the breaking of deinking and not deinking pulp.
5. The design of breaking device improves the defibering efficiency and reduces the power consumption.
6. The auxiliary transmission design improves the reliability of the operation.

Main specifications



Type ZG2500 ZG2750 ZG3000 ZG3250 ZG3500 ZG3750 ZG4000
Drum diameter (mm) Φ2500 Φ2750 Φ3000 Φ3250 Φ3500 Φ3750 Φ4000
Capacity (t/d) 70-120 140-200 175-250 240-340 350-450 460-600 500-700
Concentration (%) 14-18
Motor power (Kw) 132 160 280 355 500 560 630
