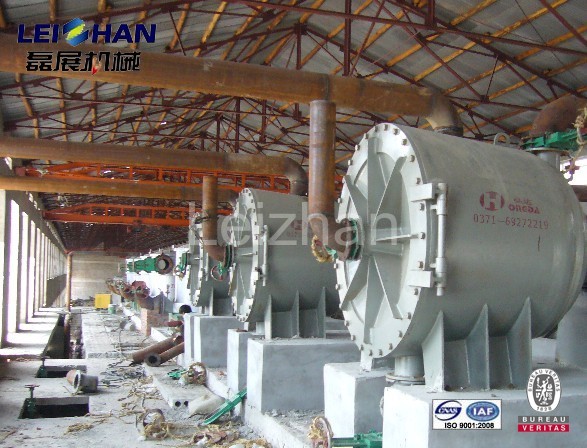

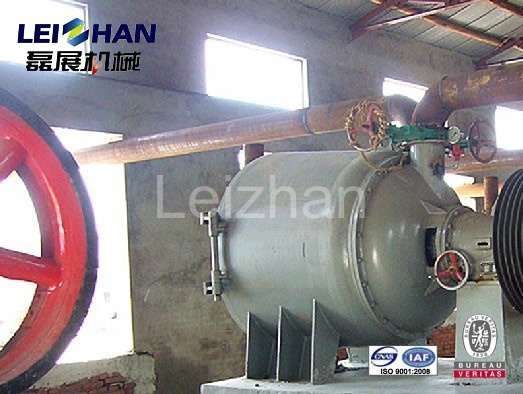

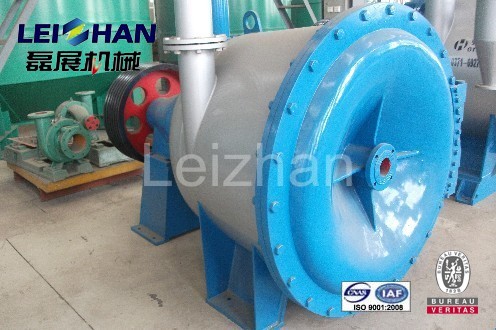

ZDF series single fiber separator
ZDF series single fiber separator is used for the secondary defibering and screening of the waste paper pulp, and separating the light and heave impurities in the slurry as well.
ZDF series single fiber separator
ZDF series single fiber separator is used for the secondary defibering and screening of the waste paper pulp, and separating the light and heave impurities in the slurry as well.
Features:
1. The secondary defibering increases the yield of the slurry.

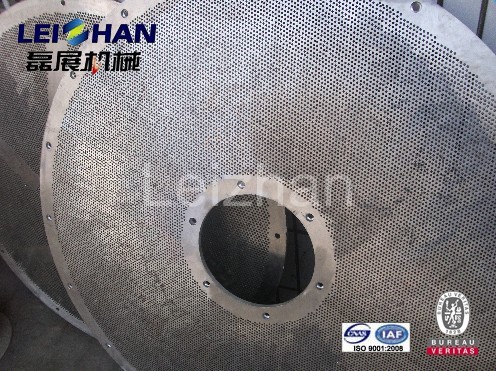

2. The worm wheel and hob adjust the clearance of cutter and sieve plate, easy to operate.
3. It can separate the light impurities and eliminate the heavy impurities by the centrifugation.
Main specifications
| Type | Type ZDF2 | Type ZDF3 | Type ZDF4 | Type ZDF5 |
| Impeller diameter (mm) | φ560 | φ720 | φ980 | φ1100 |
| Capacity (t/d) | 30-50 | 60-80 | 100-180 | 165-265 |
| Inlet pressure (Mpa) | 0.2-0.3 | |||
| Inlet concentration (%) | 2.5-4.0 | |||
| Motor power (Kw) | 37 | 55 | 90 | 110 |
| Machine weight (Kw) | 2000 | 2500 | 3000 | 4000 |
